Motors
High-Efficiency Industrial Motors for Reliable Performance
Rapidpack’s Industrial Motors makes them suitable for harsh environments where mechanical stresses and external impacts are common. Additionally, the high mechanical strength ensures long-term reliability and minimal maintenance, making these motors a preferred choice for industries such as mining, steel production, and other sectors requiring continuous operation.
Versatility
Available in various types and sizes, Rapidpack motors can be used in a wide range of applications.
Reliability and durability
Built to withstand harsh conditions, rapidpack motors offer long servcice life with minimal maintenance
Precision and control
Advanced rapidpack motorsprovide precise control over speed, position, and torque, essential for applications.
Enivornmental impact
High- efficiency motors contribute to lower energy consumption and reduced greenhouse gas emissions.
Explore Our Models

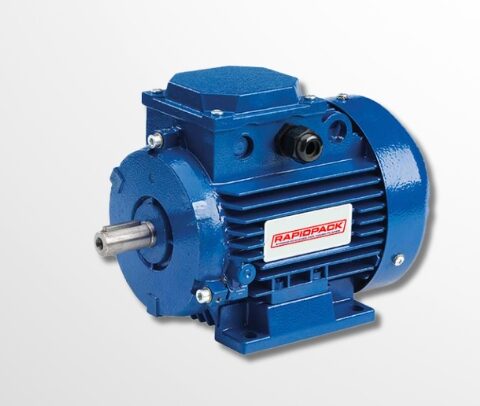

SI SERIES
- 3-phase, squirrel cage, IE1 standard efficiency (IEC 60034-30-1) motors in Aluminium die cast frame.
- A removable foot mount is integrated in SI Series motors as an additional feature to enhance its capability.
CI SERIES
- 3-phase, squirrel cage, IE1 standard efficiency (IEC 60034-30-1) motors in Cast Iron frame.
- CI series motors are suitable for continuous S1 duty, under constant load to allow the machine to reach thermal equilibrium.
STANDARD SPECIFICATIONS
| ITEM | STANDARD SPECIFICATIONS |
|---|---|
| Type of Electric Motor | Totally enclosed fan cooling squirrel-cage induction motor |
| Design Standards | BS 4999, BS 5000, IEC 60034, IEC 60072 |
| Voltage and Frequency | 220-240V / 380-415V / 50Hz for 22kW & below; 380-415V / 660-720V / 50Hz for 3kW & above; voltages such as 200V, 346V ∼ 460V can be supplied on request |
| Method Of Starting | Full voltage direct online starting or star-delta starting |
| Power Conditions | ± 5% of rated voltage |
| Cooling Method | Self-external fan, surface cooling (IC 411) |
| Mounting | Horizontal foot mounting, flange mounting : B3; B5; B14; B34; B35; V1 |
| Stator Insulation | Class F insulation; Class B temperature rise |
| Rotor Winding | Squirrel cage, aluminum conductor with end-ring and wafter blades integrally cast |
| Environmental Conditions | Place: Shaded, non-hazardous; Ambient Temp: -20°C to 40°C; Relative Humidity: Less than 90% RH (non-condensation); Altitude: Less than 1,000m |
| Direction of Rotation | Standard motors are suitable for operation in either direction of rotation. Direction of rotation of motor can be reversed by interchanging any two phases |
| Test Procedure | IEC and full voltage measuring starting operation |
| Bearing | Motors of frame sizes 160 and below are fitted with self-lubricated Bearings; Motors of frame sizes 180 and above are fitted with open bearings and regreasing device. |
| Grounding Terminal | Set inside the terminal box |
| Painting | Phenolic rust-proof base plus lacquer surface finish; Painting in blue color |
| Lubrication | Lithium-base grease (Shell Alvania R3) |
Customizable Features of Rapidpack Industrial Motors
- IP66
- IP56
- Corrosion-Proof
- Class H Insulation
- Sun Canopy
- Brake Motor
- PTC Thermistor for Heater Thermal Protection
- TENV Motor (Totally Enclosed Non-Ventilated)
- Grease Relief for Frames to 100L
- Special Shaft Extensions
- Inverter Duty Application
- High-Temperature Resistance
- Multi-Speed
- Special Volt/Hz
- Double-Ended Shaft
- Special Paint Finish
- Extended Lead Wire
- Anti-Condensation Heater
