mobile Radial
Telescopic Shiploader
One Mobile Platform, Multiple Operations!
The Rapidpack Mobile Radial Telescopic Shiploader is designed to move dry bulk cargo continuously while allowing the discharge point to be repositioned across a wider operating area.
Its boom can extend and retract, raise and lower, and move radially around the working area – reducing the need to repeatedly reposition the complete machine.
Adjustable Height
Reach more without moving the machine
Greater Reach
Cover more ground with greater accuracy.
Radial Movement
Less Repositions. More operational productivity.
Better Control
Consistent, efficient material handling.
ONE MACHINE. TWO OPERATIONS

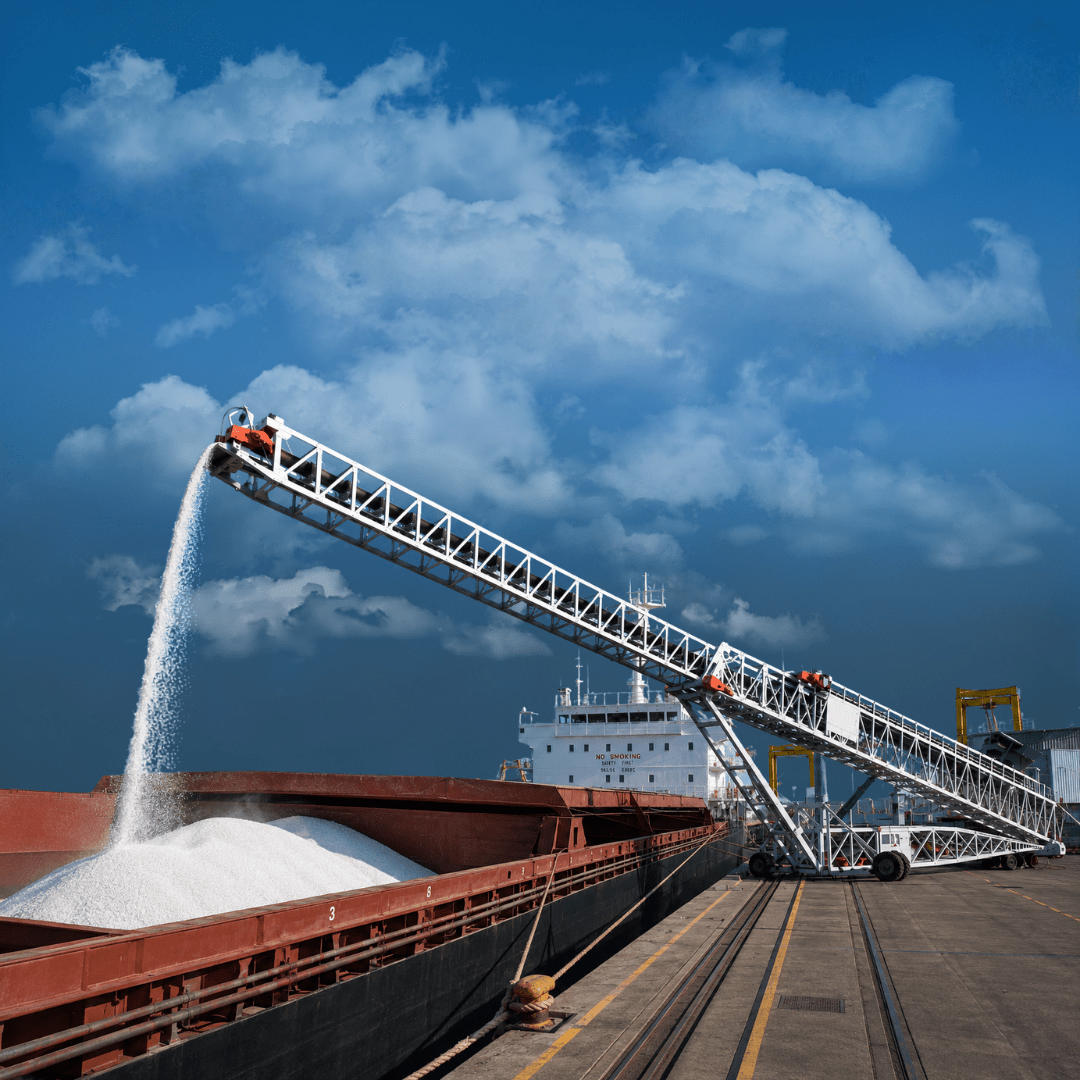

Reach Further. Load Wider.
✅ Adjustable discharge height
✅ Wide side-to-side coverage

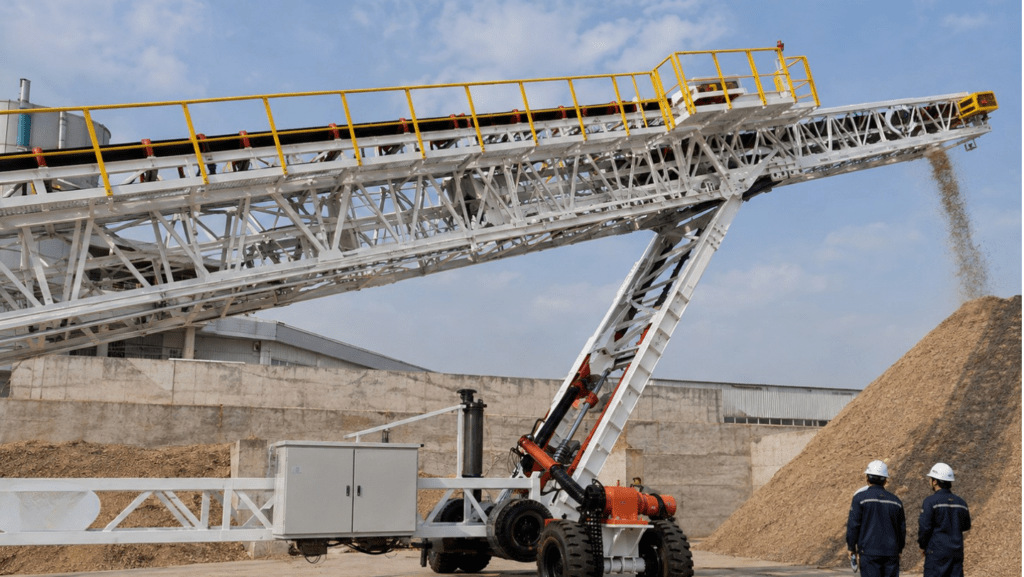

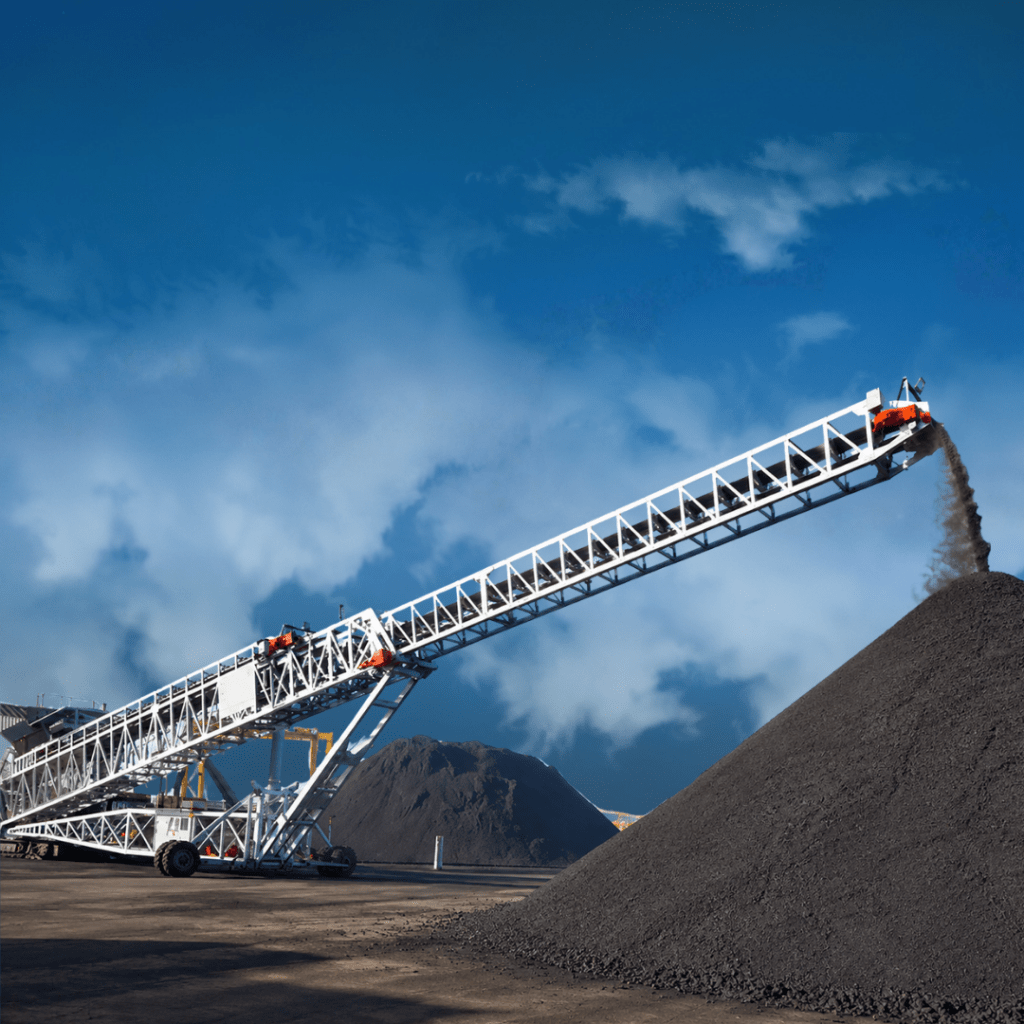

Stack Wider. Build Higher.
✅ Adjustable discharge height
✅ Radial stacking coverage
BULK MATERIALS WE HANDLE
Pulses
Dry Beans, Lentils, Faba Beans, Dry Peas, Chickpeas, Cowpeas, Bambara Beans, Pigeon Peas, etc.
Fertilizers
Urea, DAP, NPK, Ammonia, AN, UAN, etc.
Animal Feeds
Roughages, Concentrates, Mixed Feeds, etc.
Grains
Rice, Maize, Oats, Rye, Barley, Sorghum, Wheat, Quinoa, Millet, etc.
FEATURES AT A GLANCE
| Capability | Performance |
|---|---|
| Nomial Capacity | 1,000 t/h |
| Belt Speed | 2.5 m/s |
| Belt Width | 1,000 mm |
| Telescopic Travel | 13.5 m |
| Max Ext. Discharge Height | 15.2 m |
| Operating Angle | 6° - 18° |
| Telescopic Speed | 5.5 m/min |
| Max Travel Speed | 16.6 m/min |
Core Capabilities
- Extends the discharge point farther without moving the complete machine.
- Expands working coverage across vessel holds and stockpiles.
- Hydraulic luffing adjusts discharge height to suit operating conditions.
- Configured for vessel loading and inland bulk stacking.
- Keeps dry bulk cargo moving throughout the handling process.

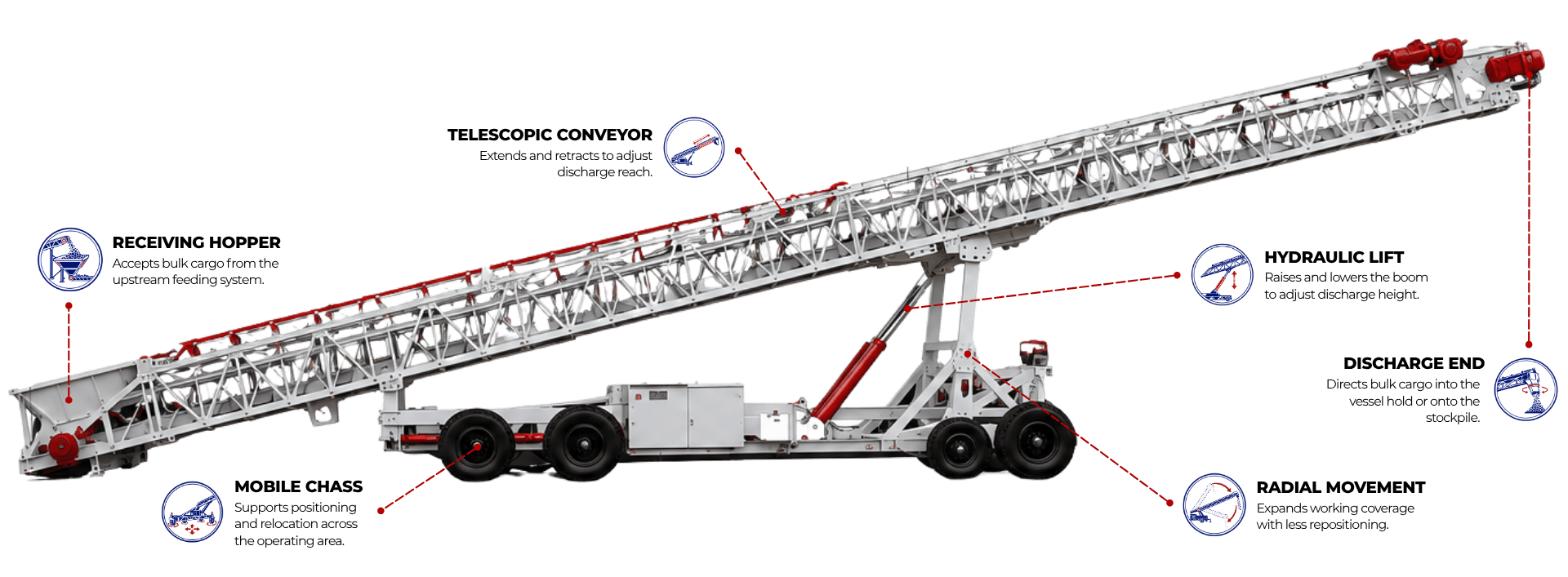

System Design
- Adjusts working outreach for greater operational coverage.
- Controls boom angle and discharge height for precise placement.
- Moves the discharge point across a wider operating area.
- Integrates with hoppers, truck unloaders, conveyors, warehouses and silos.
- Adapted around cargo, vessel, stockyard and site requirements.
Mobility & Flexibility
- Can be repositioned around terminals and stockyards.
- Covers more area without repeatedly moving the complete machine.
- Engineered around cargo, site geometry and operational requirements.
- Mobility and system arrangements can be selected for site conditions.
Built for Performance
- Reaches deeper into vessel holds and across wider operating areas.
- Radial and telescopic movement supports larger stacking areas.
- Adjustable reach, height and radial movement improve cargo distribution.
- Designed to maintain a steady flow of dry bulk cargo.
Want to Learn More?
Get a Quote
Please fill out the form below, and our team will get back to you with a custom quotation tailored to your requirements.
Frequently Asked Questions
The Rapidpack Bulk Cargo Stacker is a mobile conveyor system designed to create stockpiles, manage ground storage, and load trucks directly from bulk cargo stockpiles using a single machine.
It is used for bulk cargo stockpiling, ground silo operations, truck loading, temporary storage creation, and cargo movement in ports, terminals, warehouses, and remote locations.
Yes. The system can discharge bulk materials directly into trucks from stockpiles through its adjustable swivel discharge chute, reducing handling equipment requirements.
It can handle up to 800 tonnes per hour and create stockpiles up to 10 metres high, depending on the material and operating conditions.
Yes. The machine is equipped with a self-powered marine-grade generator, allowing independent operation in remote locations and temporary bulk storage sites.
Yes. The system is tyre-mounted, self-propelled, and designed for rapid deployment between operating areas, terminals, warehouses, and ground storage sites.
The Bulk Cargo Stacker can handle a wide range of commodities, including grains, fertilizers, sugar, aggregates, minerals, animal feed, biomass, and other free-flowing bulk materials.
The system combines stockpiling, storage management, and truck loading in one mobile machine, helping operators reduce equipment requirements, improve cargo flow, and create storage where fixed infrastructure is unavailable.
